EcoStruxure EV Charging Expert

Brand:Schneider Electric
Capacity: Number of EVlink charging stationsMulti zone: Maximum number of zonesMulti zone: Maximum number of zone levelsPower management: Dynamic, with a STATIC current setpointPower management: Time of use / DIOther loads: Power consumption reporting on other feedersBadge management: VIP privilege user badgeStation management: VIP privilege charging stationPART NO.QuantityAdd To Baskit

EcoStruxure EV Charging Expert allows EV charging to be monitored, controlled and maximized based on the real-time available power in the building.

It helps to ensure the respect of cost and energy efficiency constraints of a set of charging stations by controlling their operation. The controller runs its management program according to the selected parameters and data received from the charging stations.

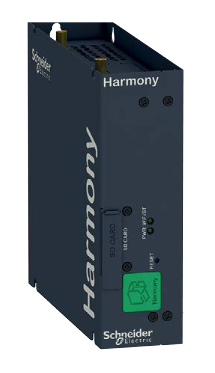

PLC type: Harmony iPC lloT Edge Box Core

Operating system: Linux Yocto

Supply voltage: 12...24 V DC

Inrush current: 0.43 A

Consumption: 16 W

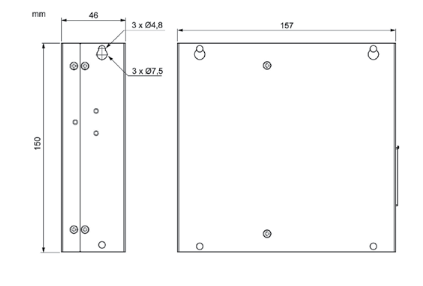

Dimensions: 150 x 46 x 157 mm

Protection class: IP40


  • 2014/30/EU (electromagnetic compatibility)
  • 2014/35/EU (Low Voltage Directive)
  • Class A EN 55022 (electromagnetic compatibility, conducted and radiated emissions)

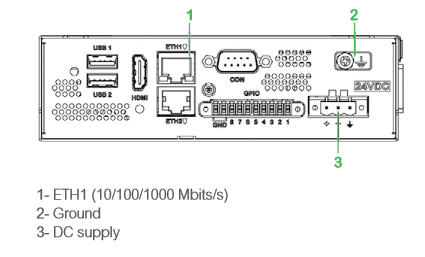

Connections: 2 x USB 2.0, 1 x HDMI, 2 x Ethernet (10/100/1000 Mb/s),1 x COM RS-232 (default), RS-232/422/485 (non-isolated), 1 ground connection, 1 x GPIO, 1 power supply connector 24 V DC

Connection to the charging stations

Directly to the Ethernet LAN via a switch

Directly to the Ethernet LAN or remotely via a 3G or 4G modem

Communication under OCPP 1.6 JSON (possible upgrade to OCPP 2.0)


Calculates the power allocated to the charging stations

Centralization and availability of data for each station

User interface

EcoStruxure EV Charging Expert provides access to an ergonomic and intuitive user interface (web server) to:

  • remote start / stop a charging session
  • reset or reboot a charging station

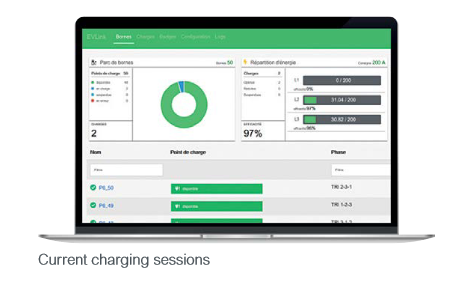

  • visualize a dashboard indicating the status of each charging station
  • manage badges (local addition, import or export badge list) and user rights

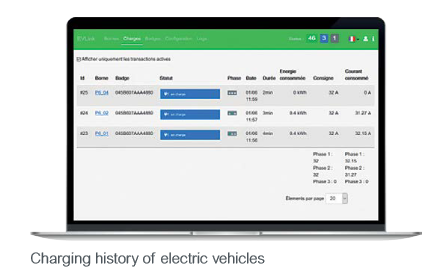

  • access and export the history of charging data by station, by badge or aggregated for the infrastructure
  • consult and export maintenance data.
