UPS (Uninterruptable Power Supply)

Single Phase UPS

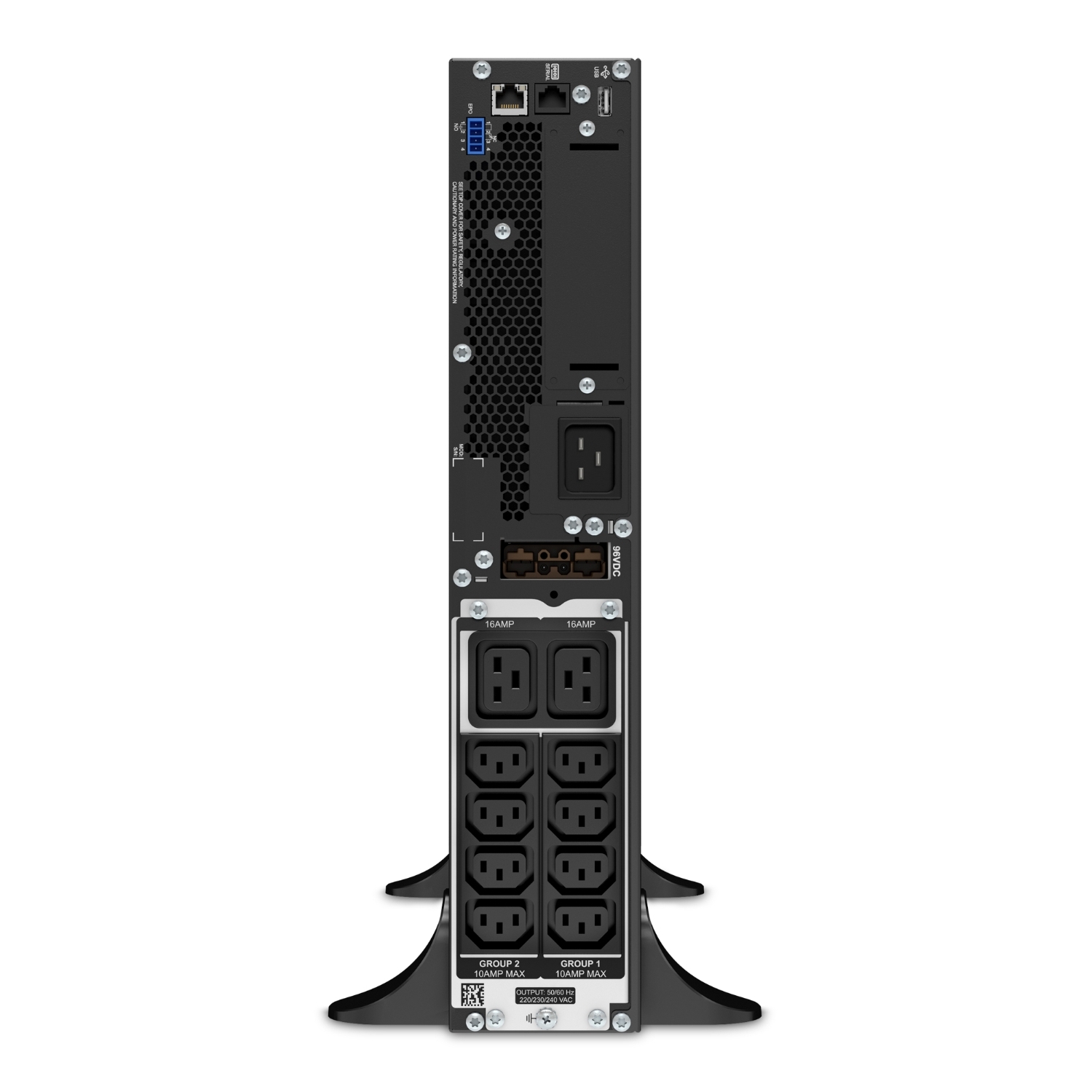

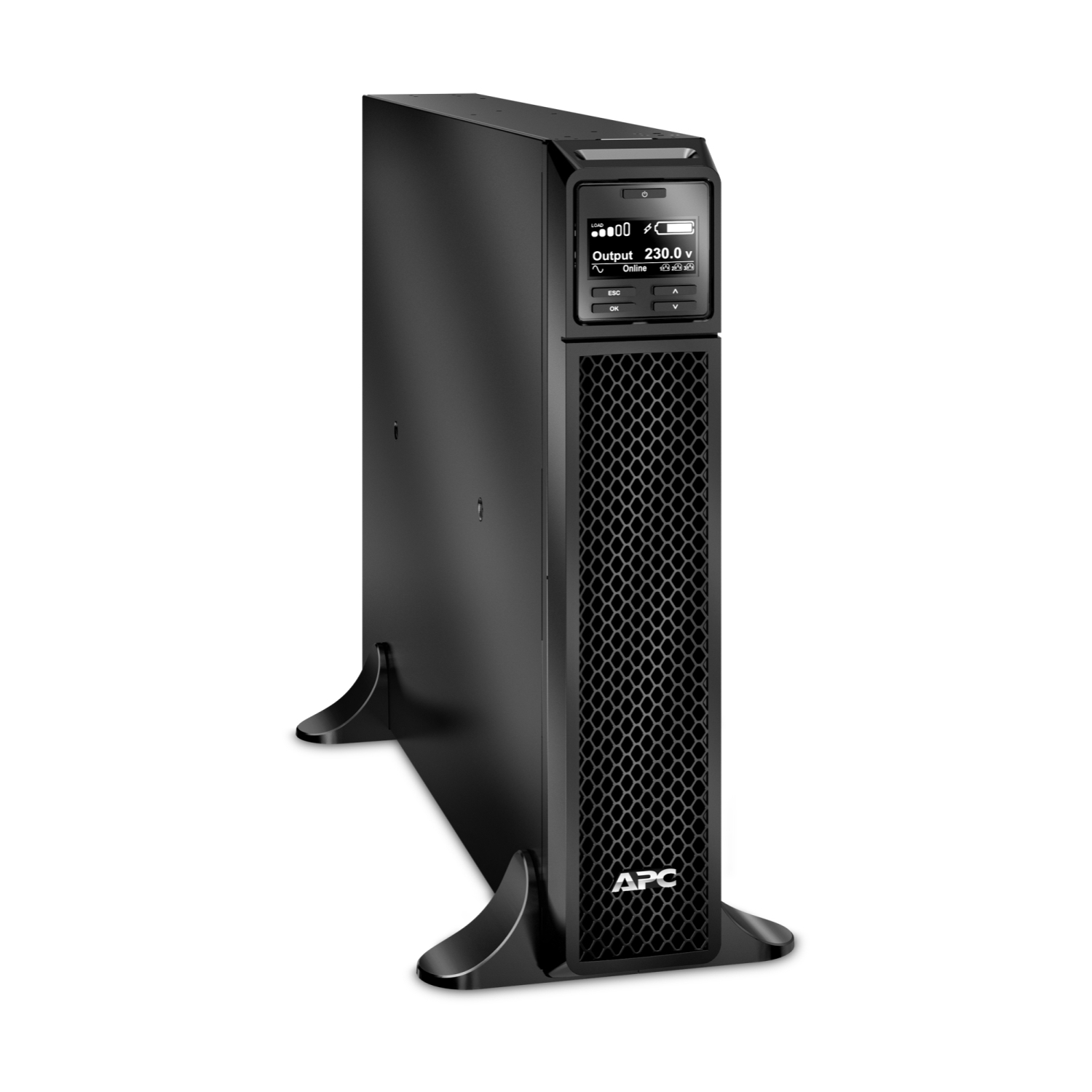

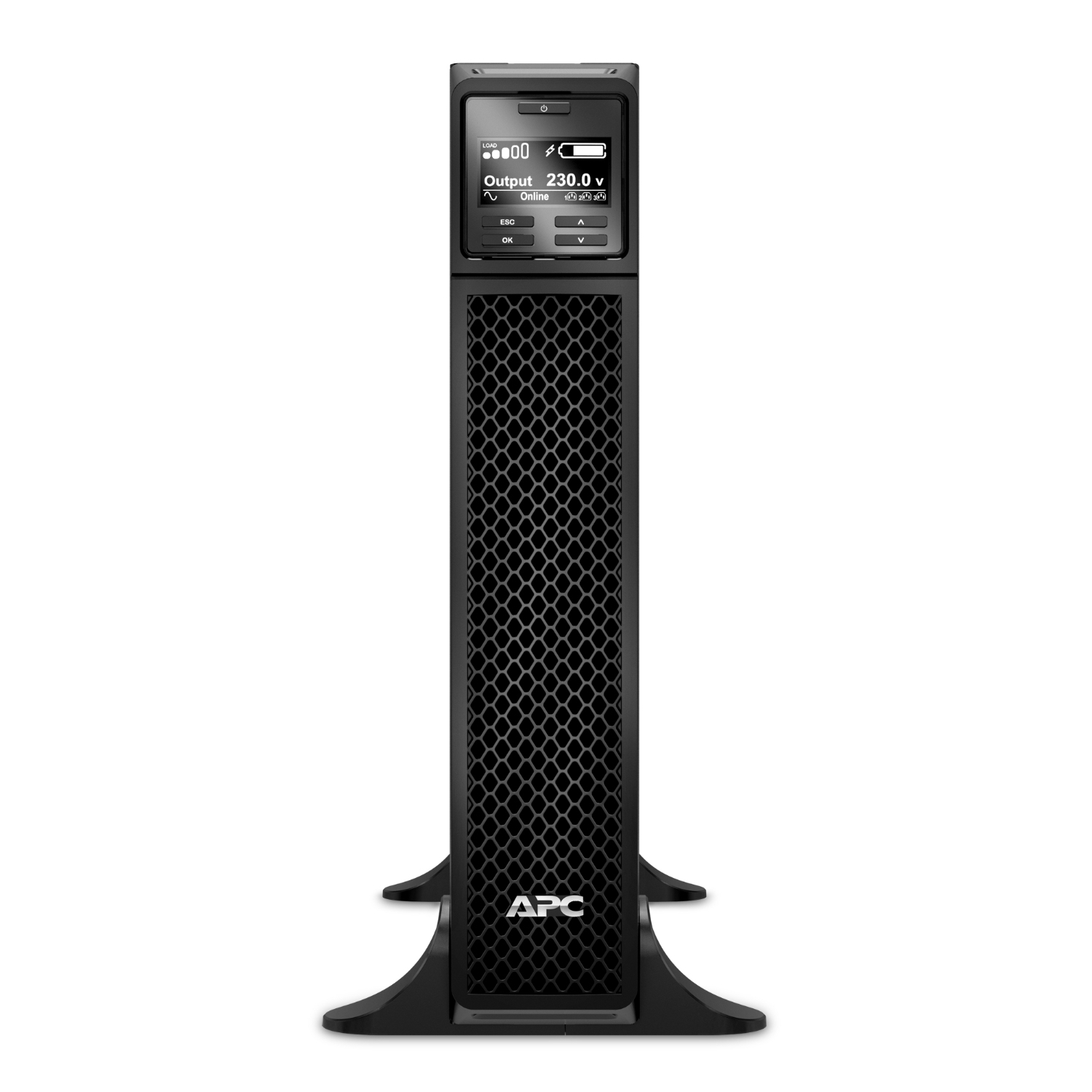

Smart UPS SRT 3kVA 230V



Add Smart-UPS-SRT-3kVA-230V to Cart :

Lead timeUsually in Stock

Main Input Voltage230 V
Other Input Voltage220 V
240 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
rated power in W2700 W
Rated power in VA3000 VA
Input Connection TypeBS1363A British
IEC 60320 C20
Schuko CEE 7 / EU1-16P
output connection type8 IEC 60320 C13
2 IEC Jumpers
2 IEC 60320 C19
Cable length2.44 m
Number of cables3
Battery typeLead-acid battery
Provided equipmentCD with software
Country-specific detachable power cord
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card

Battery recharge time3 h
Number of battery replacement quantity1
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Battery voltage96 V
Battery charger power168 W rated
Battery power in VAH505 VAh runtime
Battery life3…5 year(s)

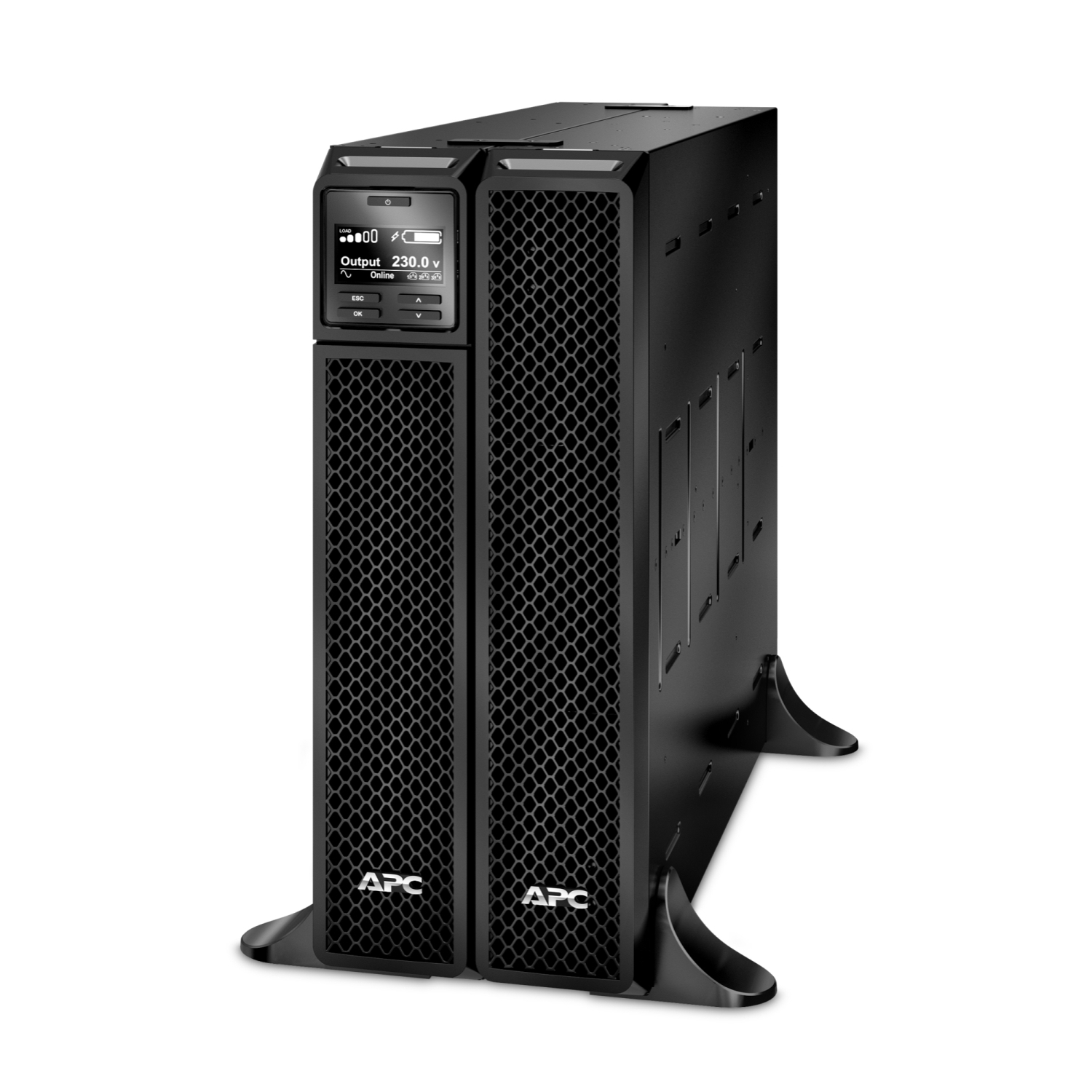

Battery optionSRT96BP 1 1515 VAh
SRT96BP 2 2525 VAh
SRT96BP 3 3535 VAh
SRT96BP 4 4545 VAh
SRT96BP 5 5555 VAh
SRT96BP 6 6565 VAh
SRT96BP 8 8585 VAh
SRT96BP 10 10605 VAh
Extended runtime1

product web sub-familyHigh density
Number of power module free slots0
Number of power module filled slots0

Height43.2 cm
Width8.5 cm
Depth63.5 cm
Product weight31.3 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted with kit
Two post mountable0
USB compatibleYes
Mounting positionVertical

Network frequency40...70 Hz auto-sensing
Input voltage limits100...275 V adjustable (half load)

Maximum configurable power in W2700 W
Harmonic distortionLess than 2 %
Output frequency50/60 Hz +/- 3 Hz sync to mains
Crest factor3 : 1
UPS typeDouble conversion online
Wave typeSine wave
bypass typeInternal bypass (automatic and manual)
Maximum configurable power in VA3000 VA

Product certificationsCE
markingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Ambient air temperature for operation0…40 °C
Relative humidity0…95 % non-condensing
Operating altitude0...10000 ft
Ambient air temperature for storage-15…45 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.00…15240.00 m
Acoustic level55 dBA
Heat dissipation703 Btu/h
IP degree of protectionIP20

Free slots1
AlarmAudible and visible alarms : prioritized by severity
Emergency power offYes

Surge energy rate340 J

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height24.6 cm
Package 1 Width87.1 cm
Package 1 Length59.9 cm
Package 1 Weight36.74 kg

Warranty3 years repair or replace (excluding battery) and 2 years for battery


High density, double-conversion on-line power protection with scalable runtime.
