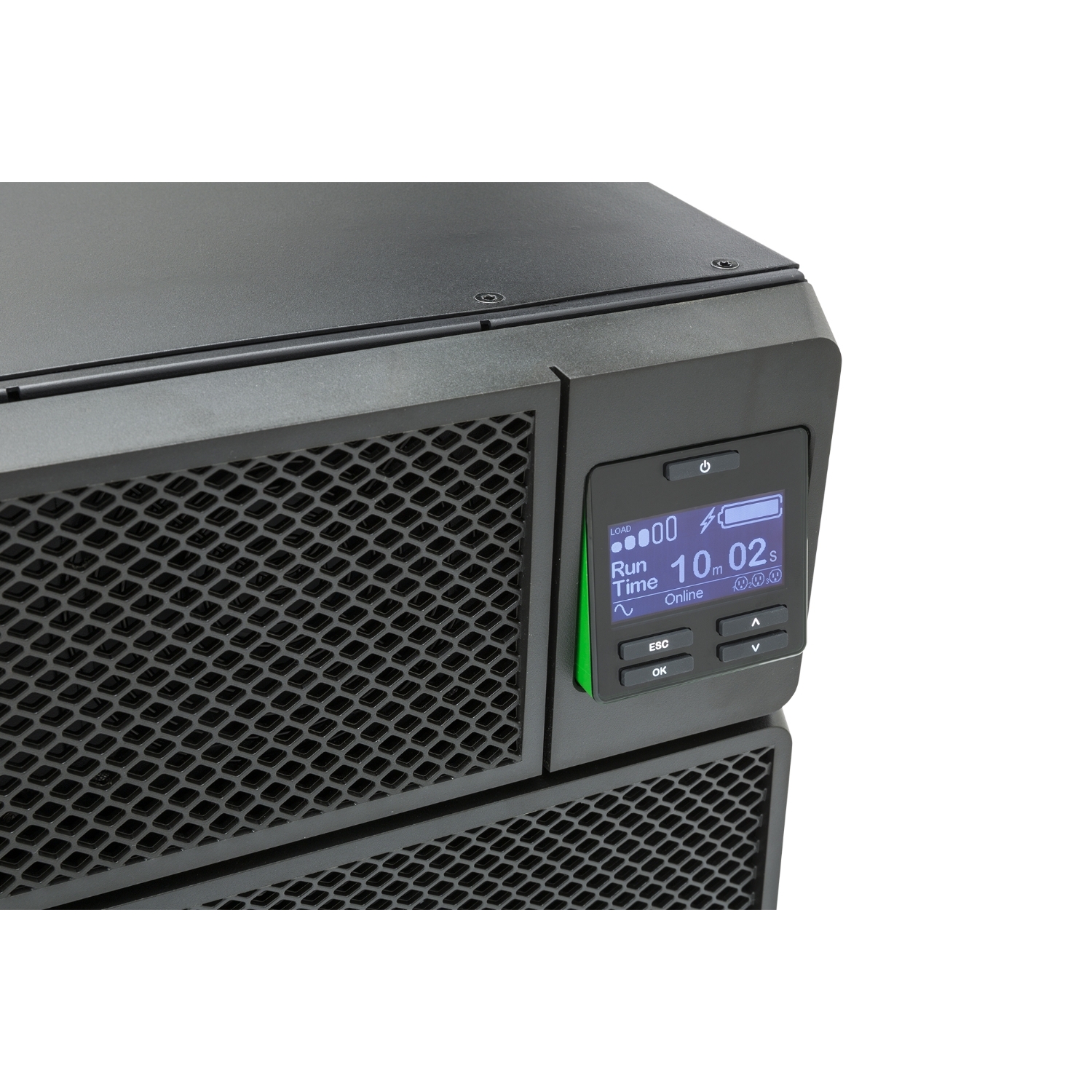

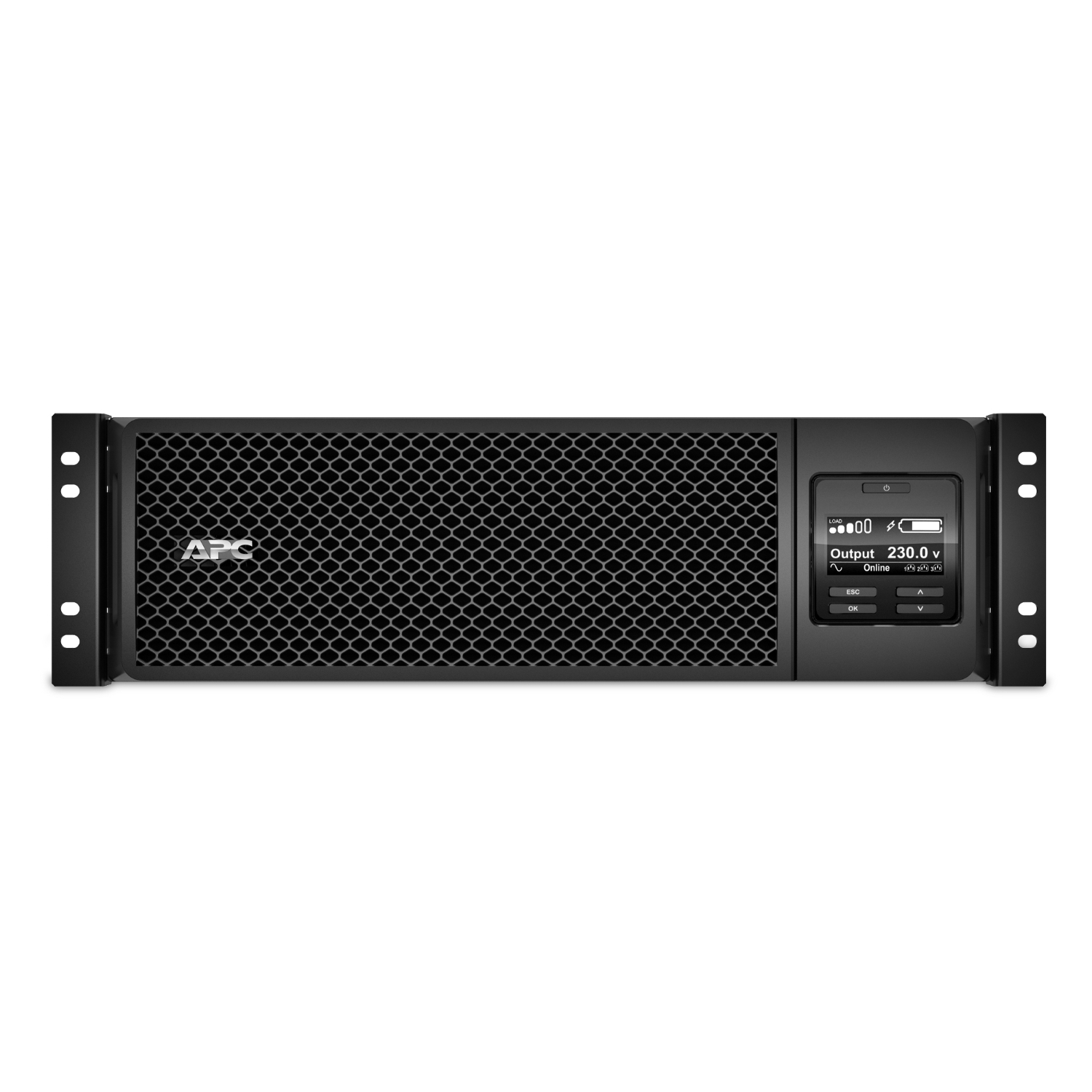

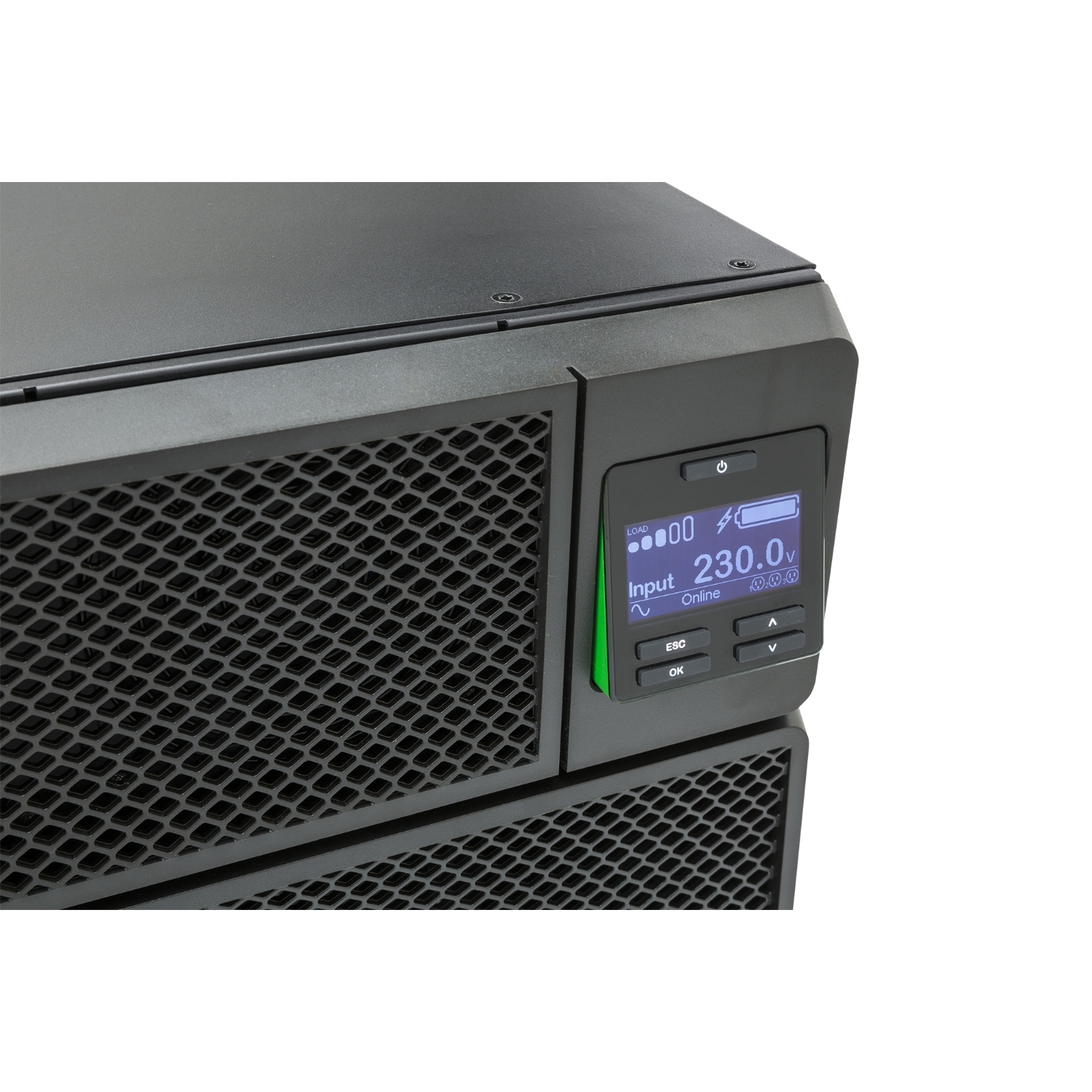

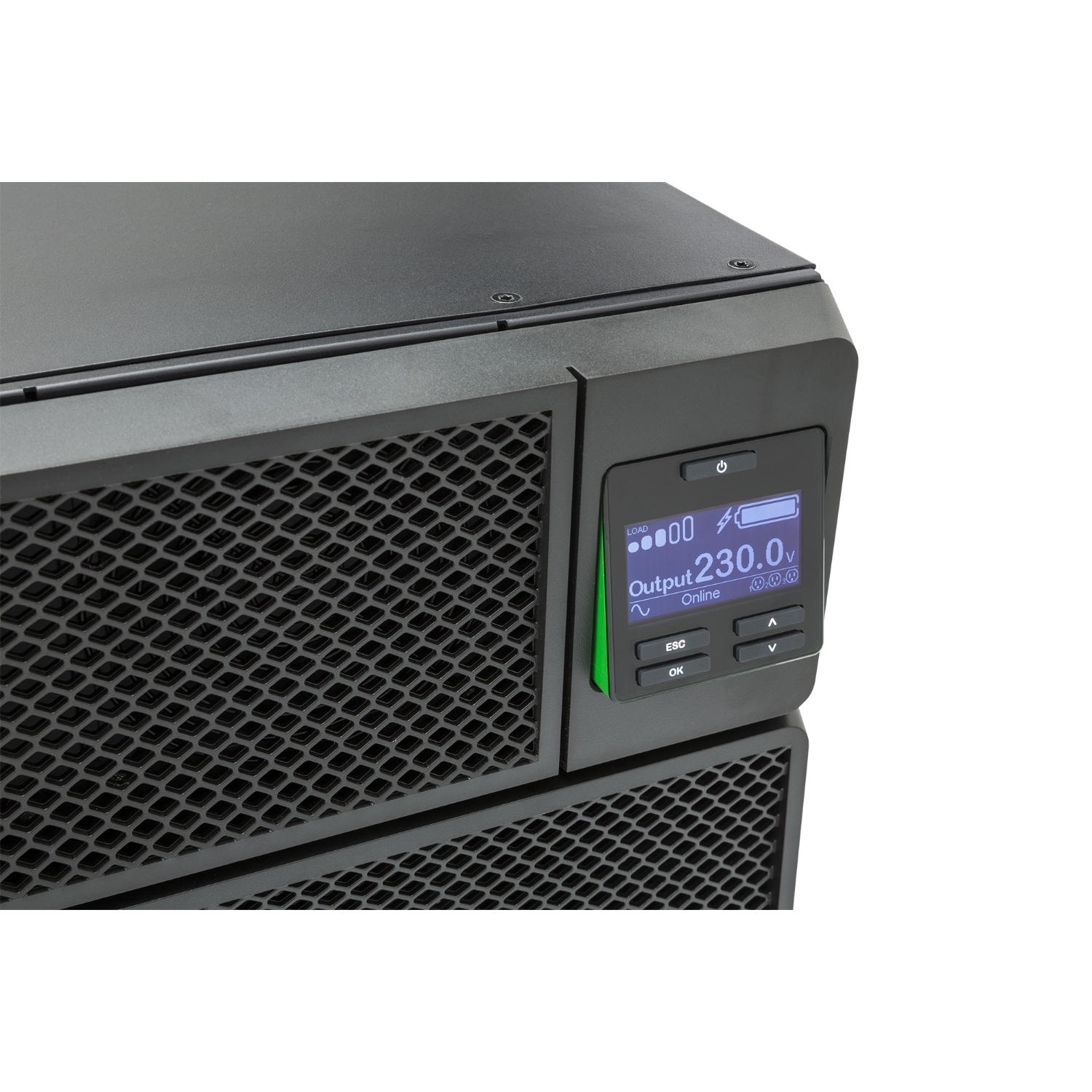

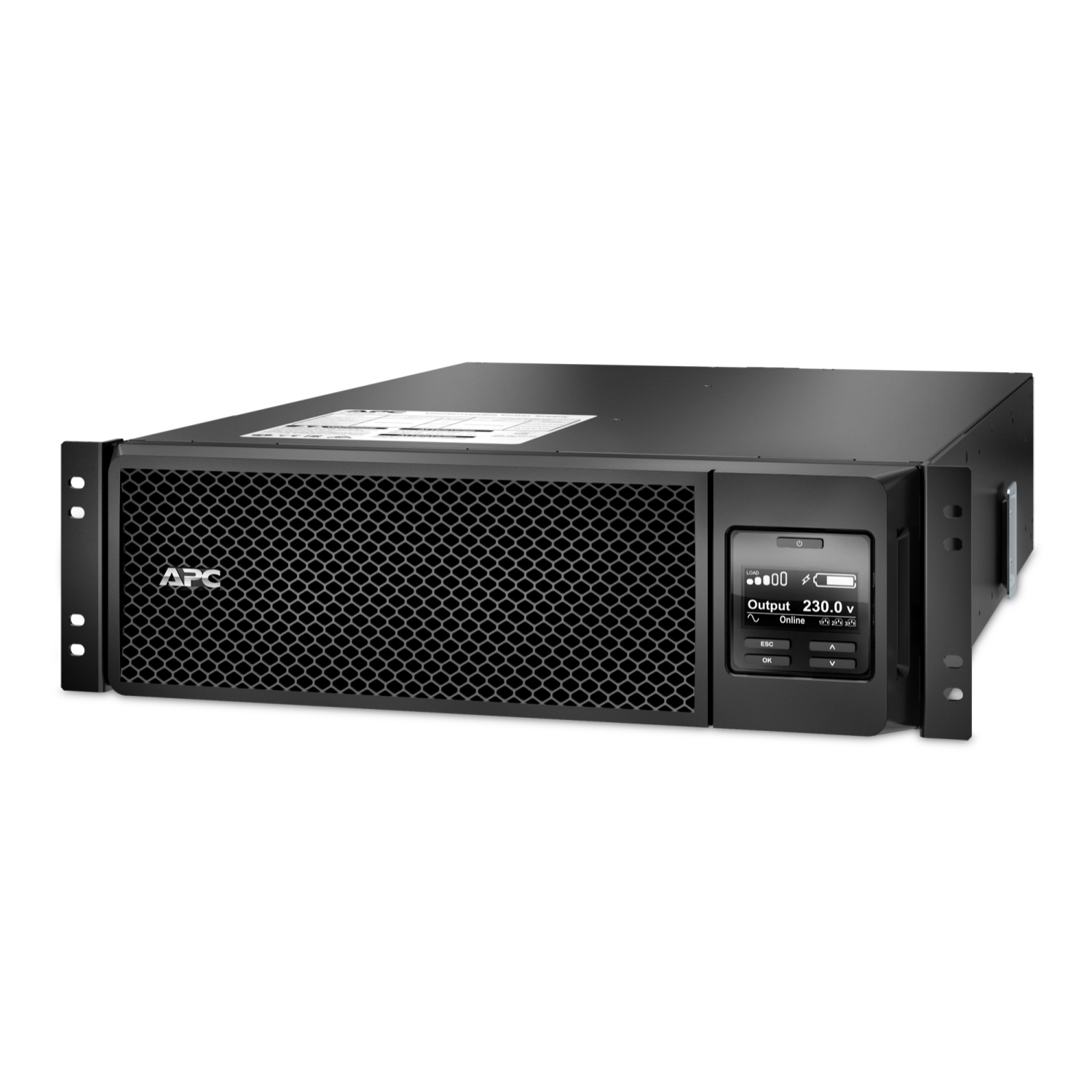

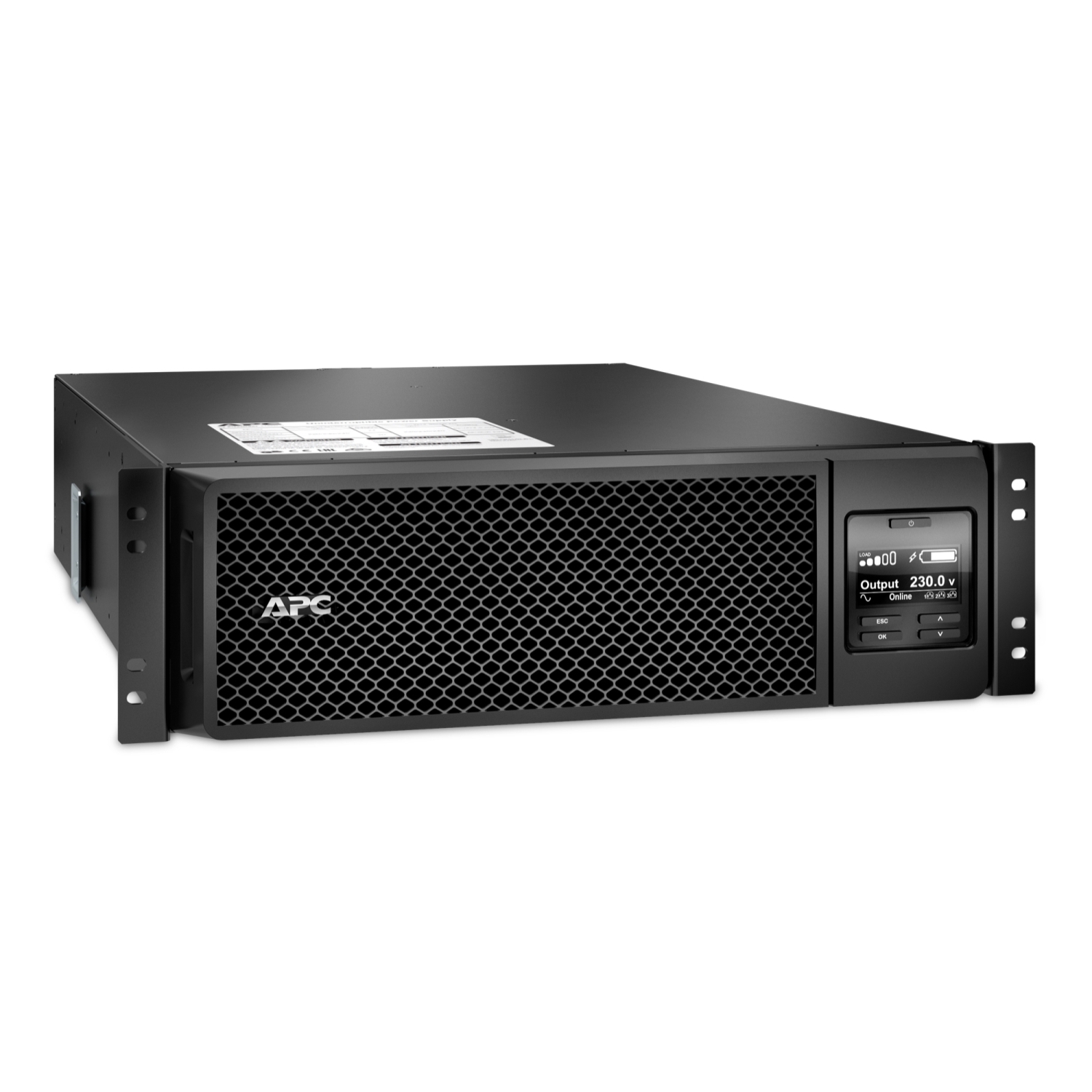

APC Smart UPS SRT 5000VA RM 230V



Add APC-Smart-UPS-SRT-5000VA-RM-230V to Cart :

Lead timeUsually in Stock

Main Input Voltage230 V
Other Input Voltage220 V
240 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
rated power in W4500 W
Rated power in VA5000 VA

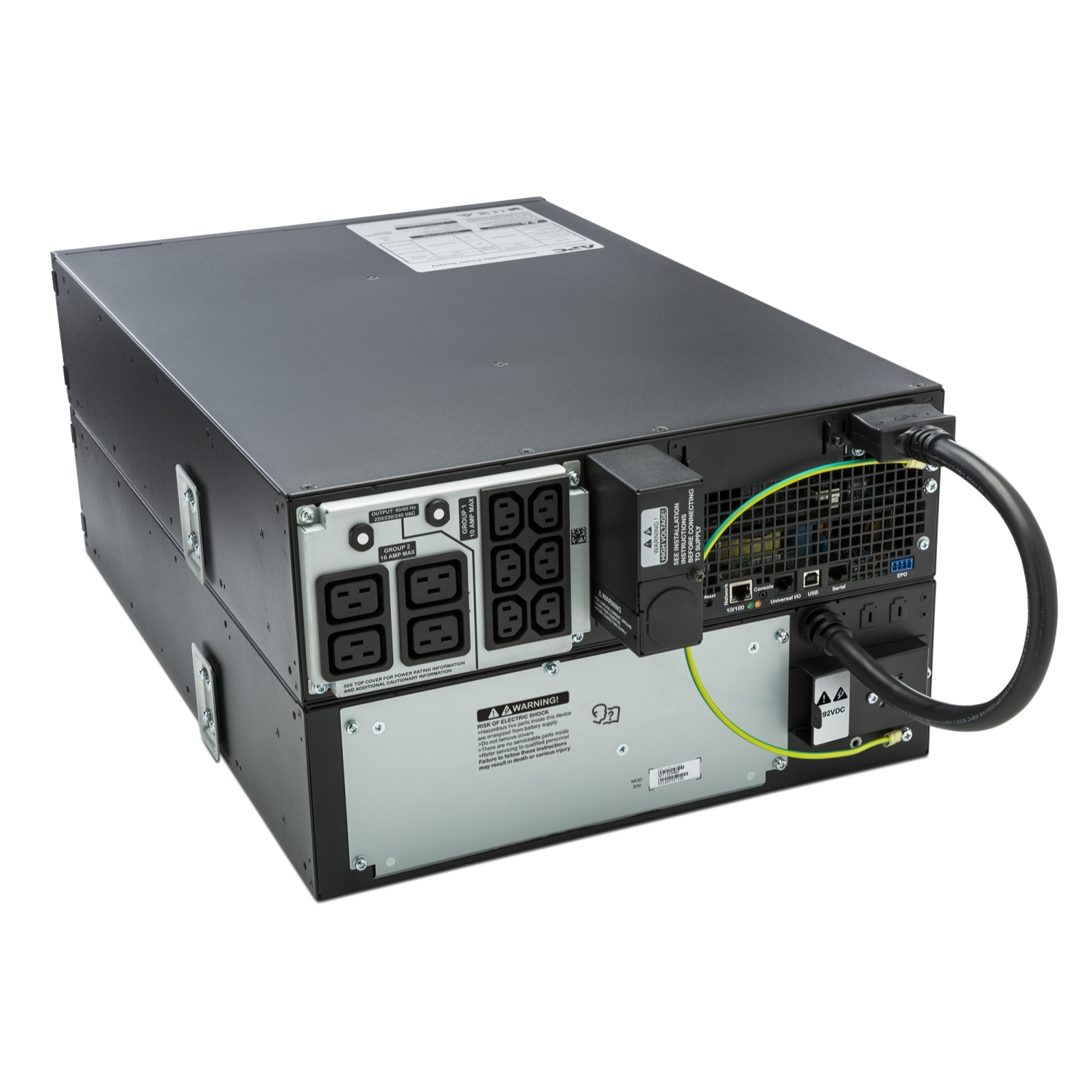

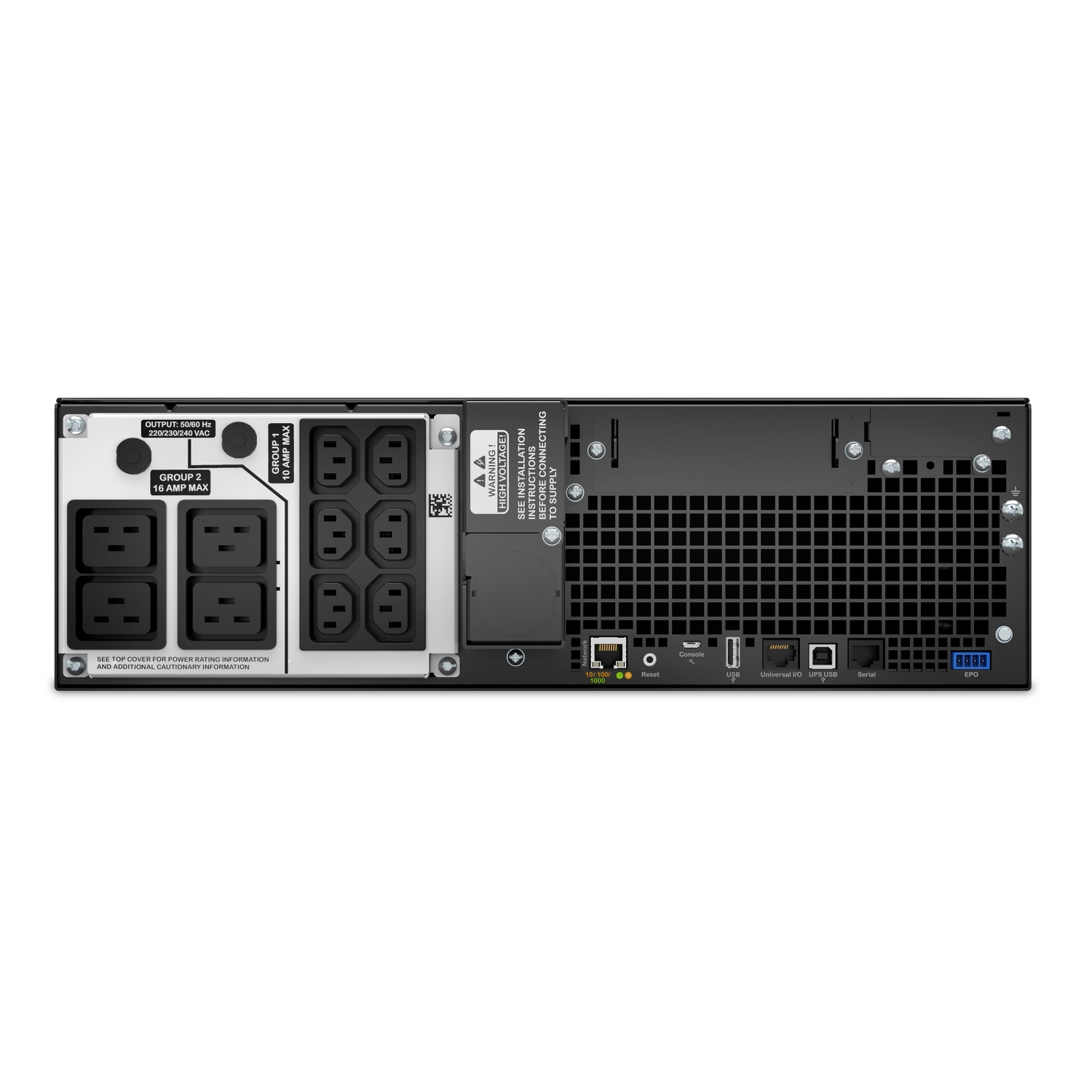

output connection type6 IEC 60320 C13
2 IEC Jumpers
4 IEC 60320 C19
Number of rack unit3U
Battery typeLead-acid battery
Provided equipmentDocumentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Temperature probe
Warranty card
Web/SNMP management card

Number of battery filled slots0
Battery recharge time1.5 h

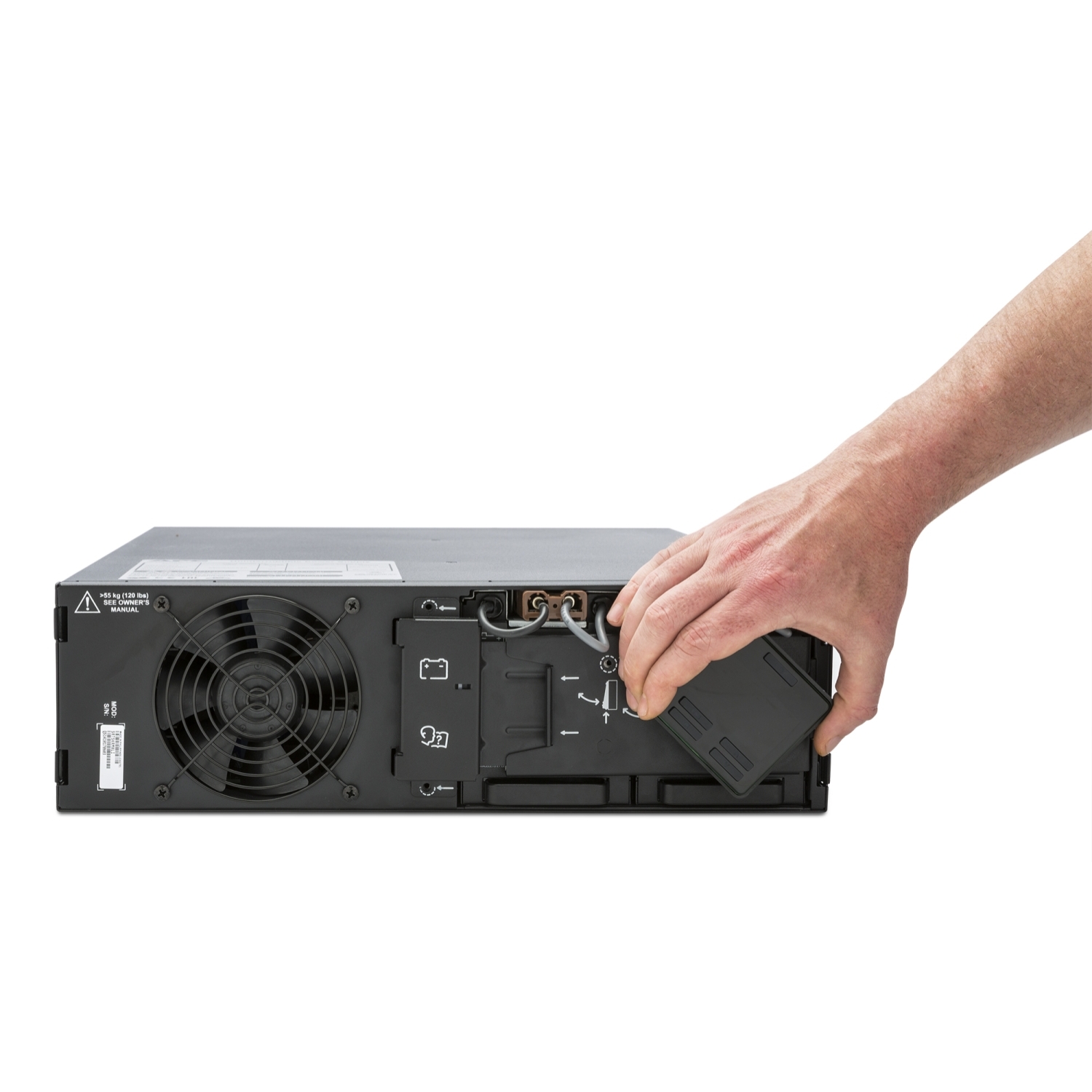

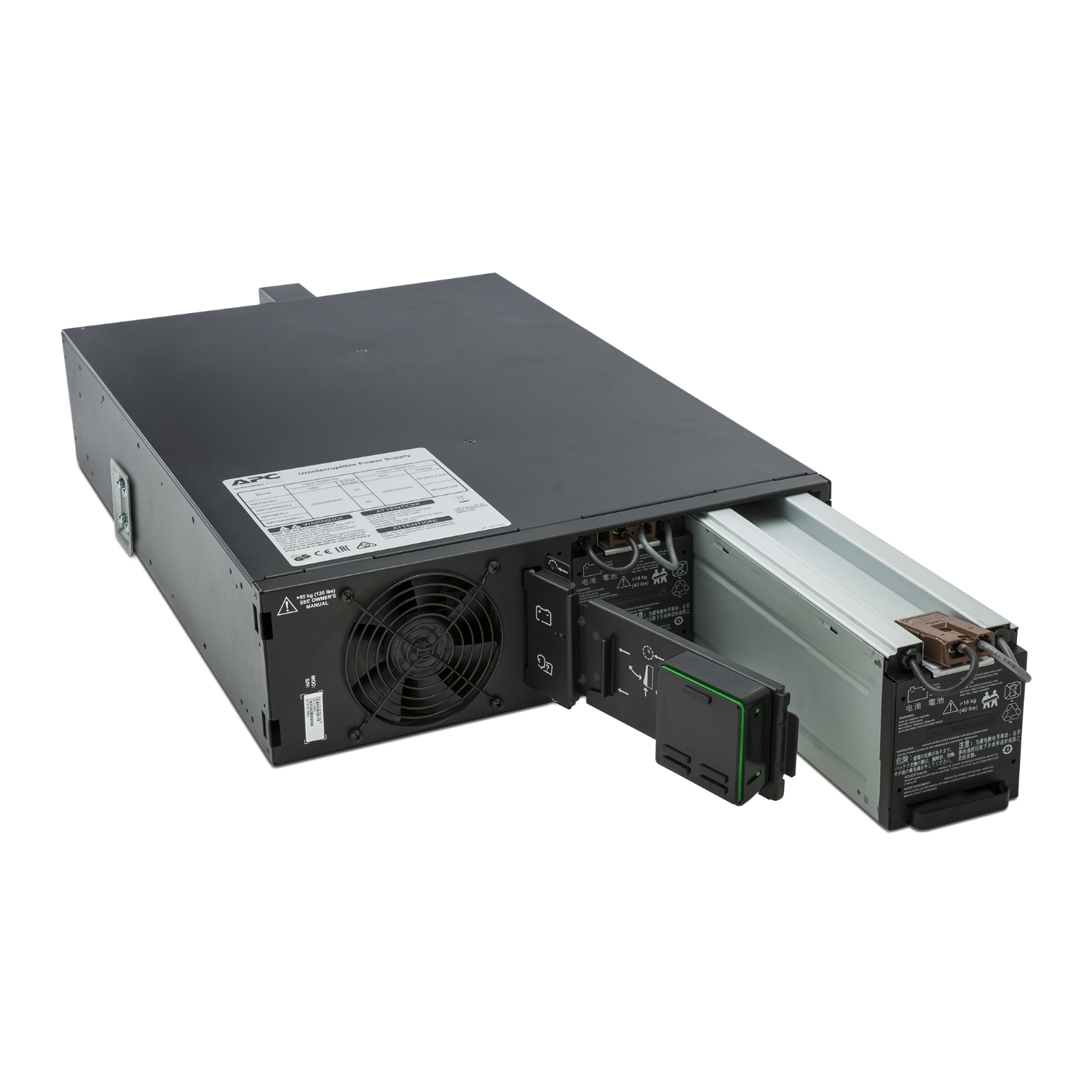

Number of battery replacement quantity1
Battery voltage192 V
Battery charger power560 W rated
Battery power in VAH845 VAh runtime
Battery life3…5 year(s)

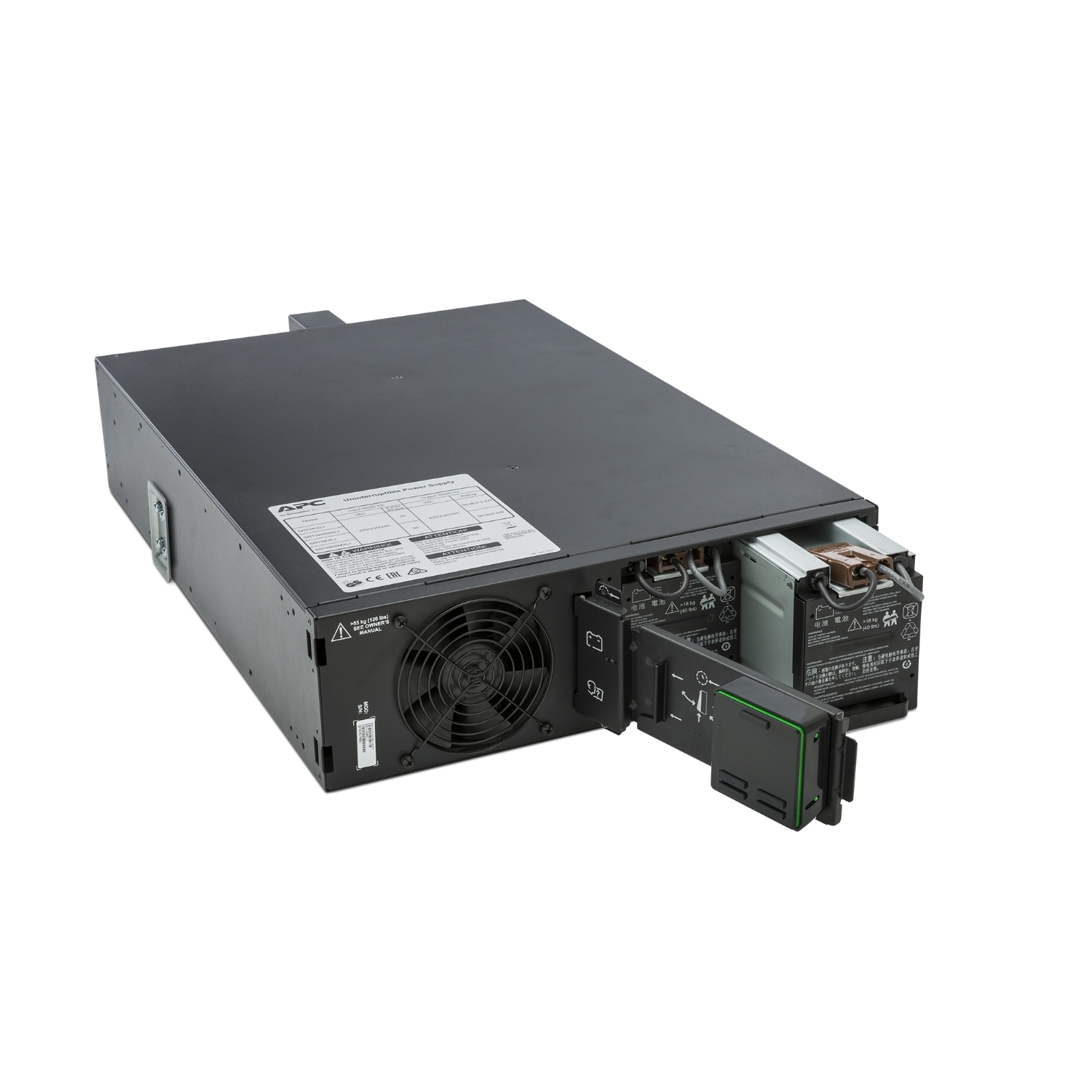

Battery optionSRT192RMBP 1 2535 VAh
SRT192RMBP 2 4225 VAh
SRT192RMBP 3 5915 VAh
SRT192RMBP 4 7605 VAh
SRT192RMBP 5 9295 VAh
SRT192RMBP 6 10985 VAh
SRT192RMBP 8 14365 VAh
SRT192RMBP 10 17745 VAh
Extended runtime1

product web sub-familyHigh density
Number of power module free slots0
Number of power module filled slots0

Height13 cm
Width43.2 cm
Depth71.94 cm
Product weight54.43 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeRack-mounted
Two post mountable0
USB compatibleYes
Mounting positionHorizontal

Network frequency40...70 Hz auto-sensing
Number of input connectors1 hard wire 3-wire (1P + N + E)
Input voltage limits100...275 V adjustable (half load)

Maximum configurable power in W4500 W
Harmonic distortionLess than 2 %
Output frequency50/60 Hz +/- 3 Hz sync to mains
Crest factor3 : 1
UPS typeDouble conversion online
Wave typeSine wave
bypass typeInternal bypass (automatic and manual)
Maximum configurable power in VA5000 VA

Product certificationsCE
markingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Ambient air temperature for operation0…40 °C
Relative humidity0…95 % non-condensing
Operating altitude0...10000 ft
Ambient air temperature for storage-15…45 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.00…15240.00 m
Acoustic level55 dBA
Heat dissipation931 Btu/h
IP degree of protectionIP20

Free slots1
Preinstalled deviceNetwork management card 3 with environmental monitoring
AlarmAudible and visible alarms : prioritized by severity
Emergency power offYes

Surge energy rate480 J

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height33 cm
Package 1 Width61 cm
Package 1 Length96 cm
Package 1 Weight66.86 kg

Warranty3 years repair or replace (excluding battery) and 2 years for battery


High density, double-conversion on-line power protection with scalable runtime.
