APC-Smart-UPS-SRT-10000VA-RM-230V

UPS (Uninterruptable Power Supply)

Single Phase UPS

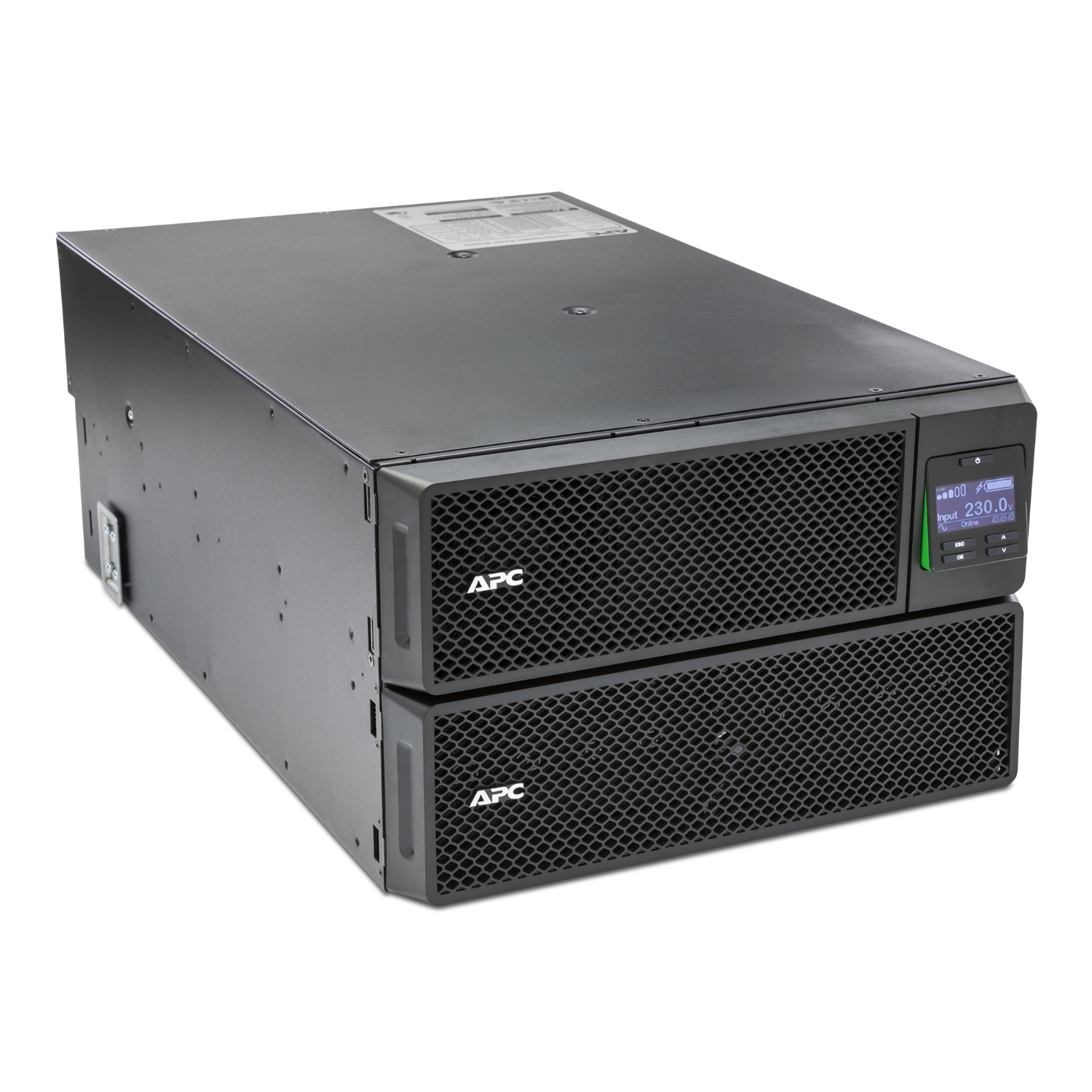

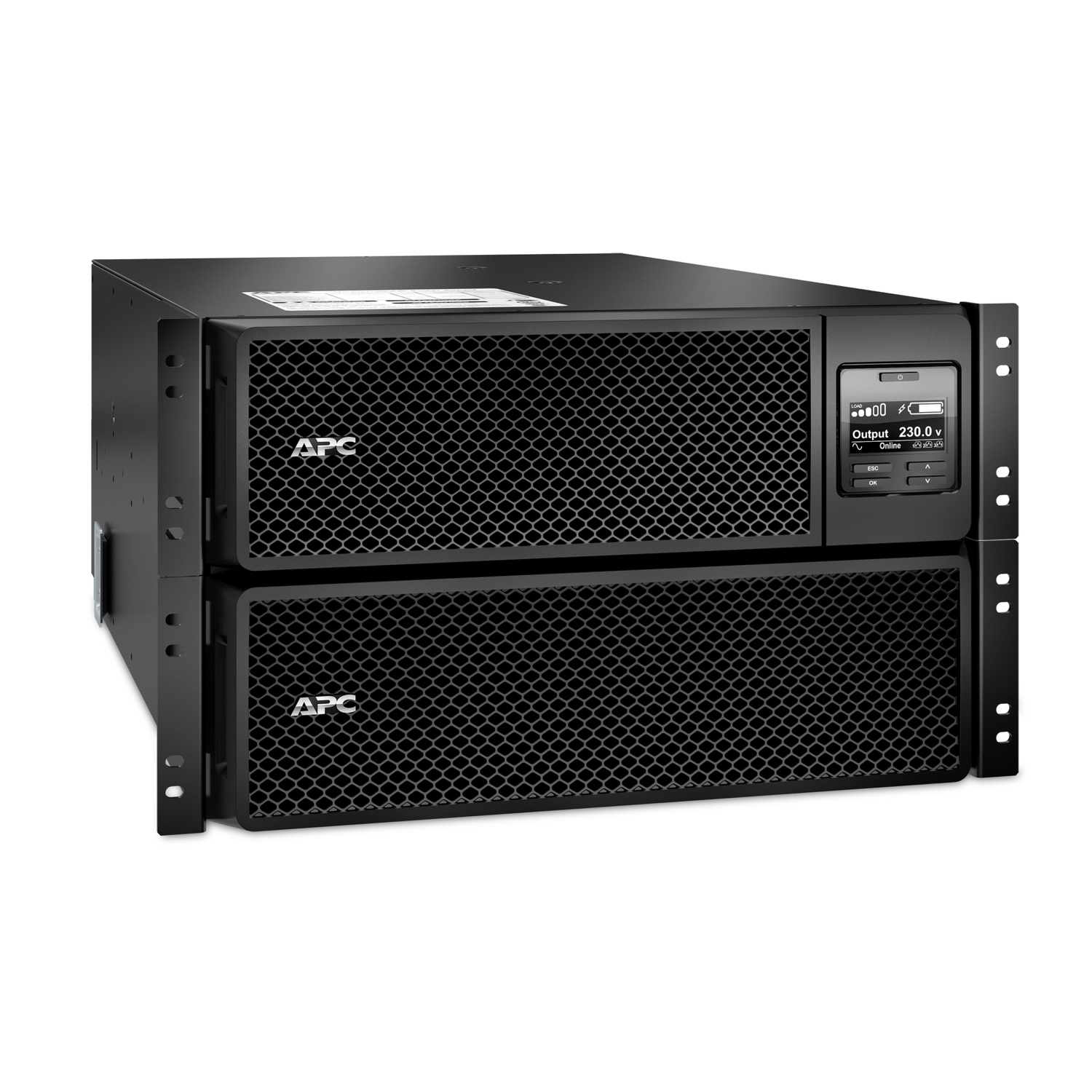

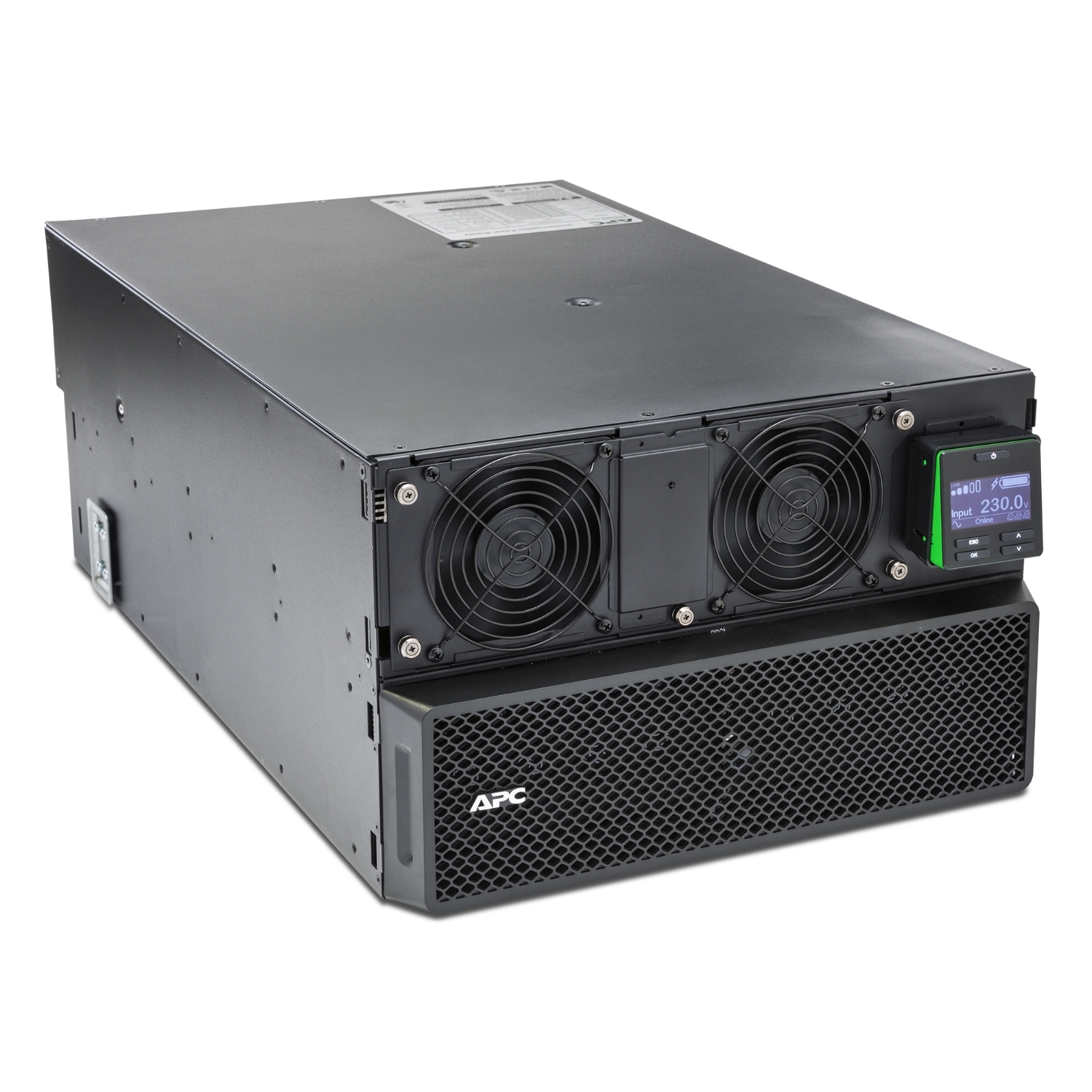

APC Smart UPS SRT 10000VA RM 230V

SRT10KRMXLI

Brand:APC

Add APC-Smart-UPS-SRT-10000VA-RM-230V to Cart :

Lead timeUsually in Stock

Main Input Voltage230 V
400 V 3 phases
Other Input Voltage220 V
240 V
380 V
415 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
rated power in W10000 W
Rated power in VA10000 VA

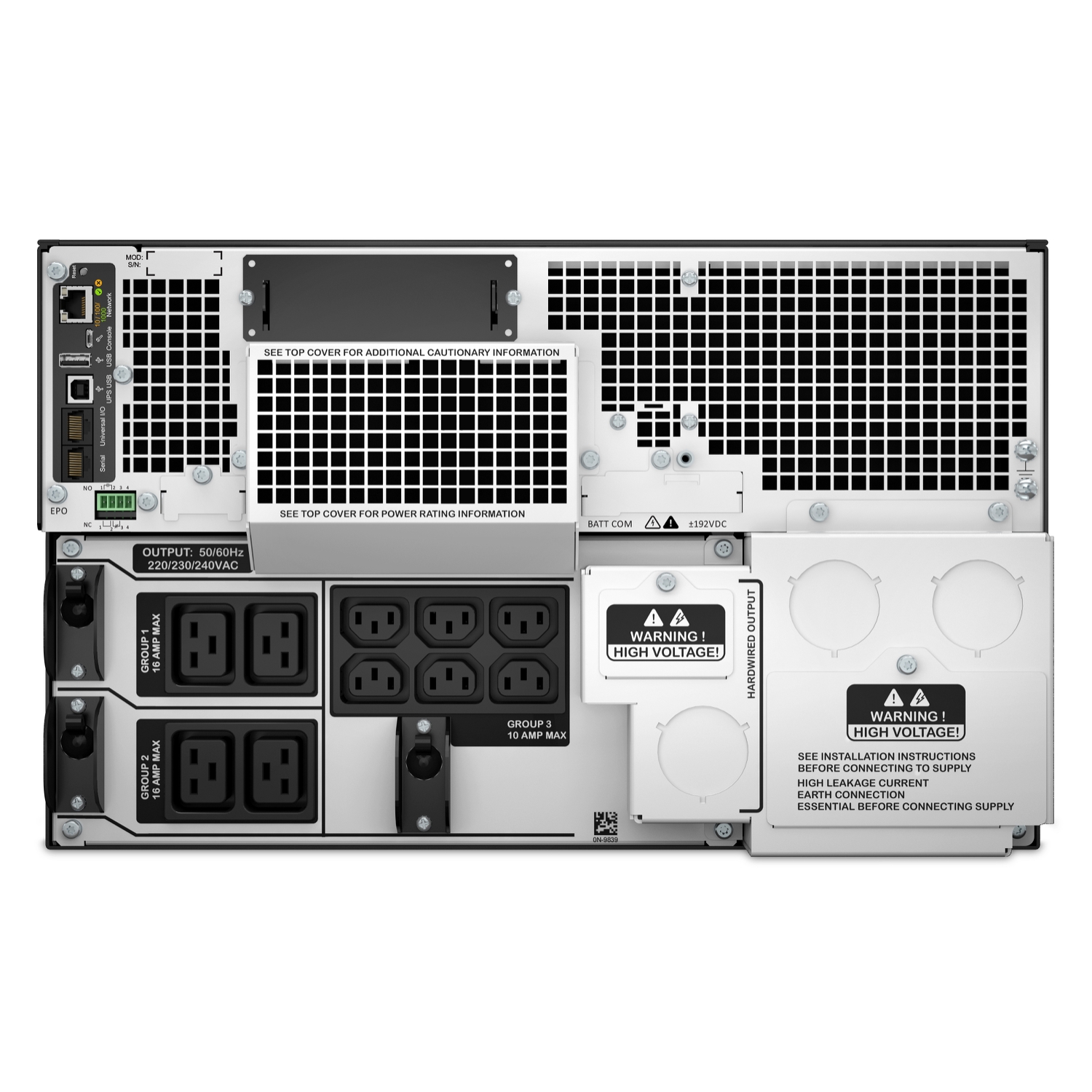

output connection type6 IEC 60320 C13
3 IEC Jumpers
4 IEC 60320 C19
Output connector typeHard wire 3-wire (H N + E) 1
Number of rack unit6U
Battery typeLead-acid battery
Provided equipmentCD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Temperature probe
USB cable
Warranty card
Web/SNMP management card

Number of battery filled slots0
Battery recharge time1.5 h
Number of battery replacement quantity2
Battery voltage+/- 192 V (split battery referenced to neutral)
Battery charger power876 W rated
Battery power in VAH1805 VAh runtime
Battery life3…5 year(s)

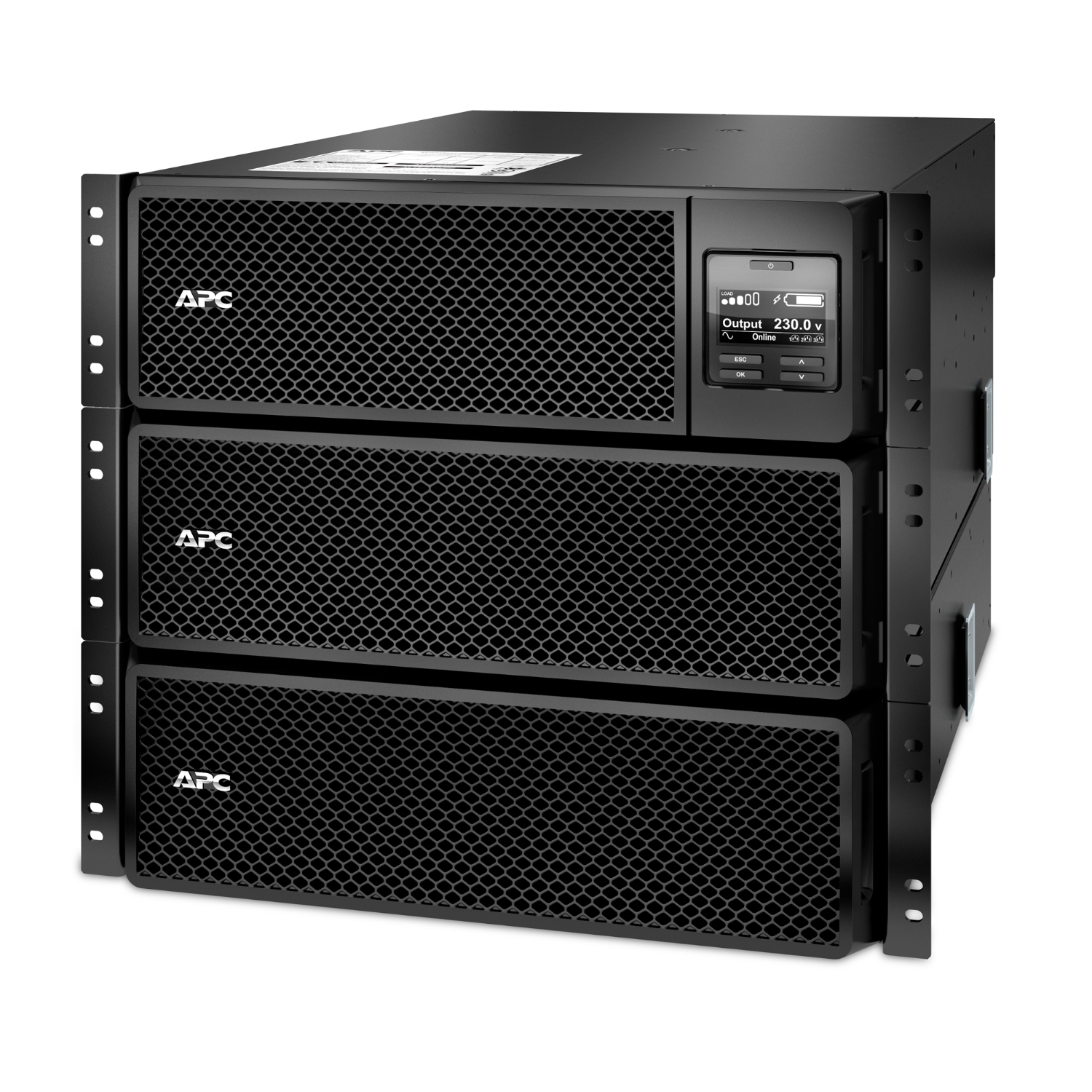

Battery optionSRT192RMBP2 1 3610 VAh
SRT192RMBP2 2 5415 VAh
SRT192RMBP2 3 7220 VAh
SRT192RMBP2 4 9025 VAh
SRT192RMBP2 5 10830 VAh
SRT192RMBP2 6 12635 VAh
SRT192RMBP2 8 16245 VAh
SRT192RMBP2 10 19855 VAh
Extended runtime1

product web sub-familyHigh density
Number of power module free slots0
Number of power module filled slots0
RedundantNo

ColourBlack
Height26.3 cm
Width43.2 cm
Depth71.5 cm
Product weight111.82 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeRack-mounted
Two post mountable0
USB compatibleYes

Network frequency40...70 Hz auto-sensing
Number of input connectors1 hard wire 3-wire (1P + N + E)
1 hard wire 5-wire (3P + N + E)
Input voltage limits100...275 V adjustable (half load)
173...476 V adjustable (half load)

Maximum configurable power in W10000 W
Harmonic distortionLess than 2 %
Output frequency50/60 Hz +/- 3 Hz sync to mains
Crest factor3 : 1
UPS typeDouble conversion online
Wave typeSine wave
bypass typeInternal bypass (automatic and manual)
Maximum configurable power in VA10000 VA

Product certificationsCE
EAC
IRAM
RCM
VDE
markingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Ambient air temperature for operation0…40 °C
Relative humidity0…95 % non-condensing
Operating altitude0...10000 ft
Ambient air temperature for storage-15…45 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.00…15240.00 m
Acoustic level55 dBA
Heat dissipation1947 Btu/h
IP degree of protectionIP20

Free slots1
Preinstalled deviceNetwork management card 3 with environmental monitoring
AlarmAudible and visible alarms : prioritized by severity
Emergency power offYes

Surge energy rate480 J

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height46.1 cm
Package 1 Width60 cm
Package 1 Length100 cm
Package 1 Weight129.727 kg

Warranty3 years repair or replace (excluding battery) and 2 years for battery

Presentation

High density, double-conversion on-line power protection with scalable runtime.
